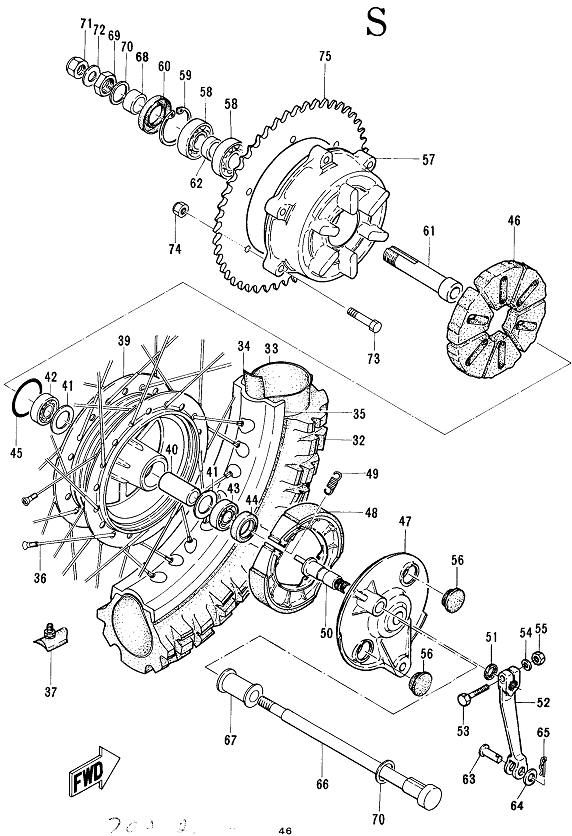

Review the figure and make your selection of parts from the list below.
Fig. |
Item # |
SKU/Part # |
Part Name |
|
|
S2 |
32 |
709202 |
Tire Nitto (4.00-18) |
1 |
|
S2 |
33 |
709204 |
Tire tube (4.00-18) |
1 |
|
S2 |
34 |
939214 |
Tire tube protector |
1 |
|
S2 |
36 |
719211 |
Rear spoke set |
1 |
|
S2 |
37 |
939261 |
Tire security bolt (1.85) |
1 |
|
S2 |
38 |
709270 |
Rear hub assemble
|
1 |
|
S2 |
39 |
989271A |
Rear drum |
1 |
|
S2 |
40 |
929272 |
Distance collar |
1 |
|
S2 |
41 |
929273 |
Seat ring |
2 |
|
S2 |
42 |
BB6202Z |
Bearing |
1 |
|
S2 |
43 |
BB6202 |
Bearing |
1 |
|
S2 |
44 |
929274 |
Oil seal |
1 |
|
S2 |
45 |
929275 |
O ring seal |
1 |
|
S2 |
46 |
929276 |
Damper set of 6
|
1 set
|
|
S2 |
47 |
99927784 |
Rear backing plate |
1 |
|
S2 |
48 |
92927880 |
Rear brake shoes set
|
1 |
|
S2 |
49 |
929279 |
Rear brake shoes spring set of 2
|
1 set
|
|
S2 |
50 |
999280 |
Rear brake cam |
1 |
|
S2 |
51 |
999282 |
Cam rubber ring |
1 |
|
S2 |
52 |
709283 |
Rear brake cam lever |
1 |
|
S2 |
53 |
(10)0632 |
Bolt |
1 |
|
S2 |
54 |
(63)06015 |
Spring washer |
1 |
|
S2 |
55 |
(51)0605 |
Nut |
1 |
|
S2 |
56 |
999264 |
Inspection cover set of 2
|
1 set
|
|
S2 |
57 |
709285 |
Drive flange |
1 |
|
S2 |
58 |
BB6204 |
Bearing |
2 |
|
S2 |
59 |
(91)470175 |
Snap ring |
1 |
|
S2 |
60 |
929286 |
Oil seal |
1 |
|
S2 |
61 |
709287 |
Drive flange collar |
1 |
|
S2 |
62 |
924609 |
Bearing collar |
1 |
|
S2 |
63 |
999284 |
Cam lever pin |
1 |
|
S2 |
64 |
(62)10016 |
Washer |
1 |
|
S2 |
65 |
979189 |
Pin clip |
1 |
|
S2 |
66 |
71928881 |
Rear hub shaft |
1 |
|
S2 |
67 |
719289 |
Rear hub shaft collar (right) |
1 |
|
S2 |
68 |
719291 |
Rear hub shaft collar (left) |
1 |
|
S2 |
69 |
719299 |
Nut
|
1 |
|
S2 |
70 |
719263 |
Washer |
2 |
|
S2 |
71 |
909221 |
Self locking nut |
1 |
|
S2 |
72 |
(62)12023 |
Washer |
1 |
|
S2 |
73 |
719292 |
Rear sprocket bolt |
6 |
|
S2 |
74 |
949157 |
Self-locking nut |
6 |
|
S2 |
75 |
719250 |
Sprocket 44t #520 |
1 |
|
|
* Quantity Required is the quantity of the specific part needed for this figure.
It does not imply a minimum purchase. |
|
